UWP: Saving State

App lifecycle
1. The app lifecycle are the states a UWP app goes through when executed, navigated away from, and terminated

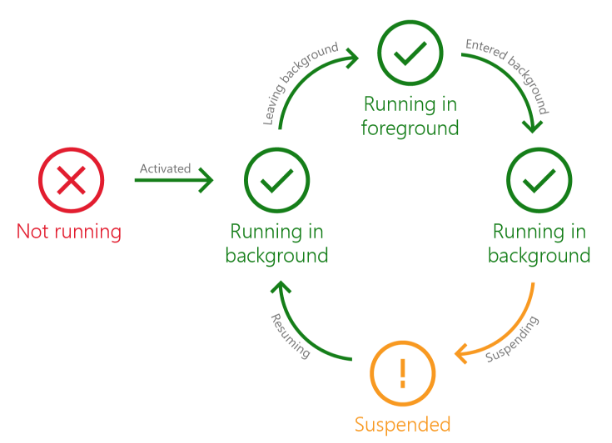

2. Figure borrowed from article Windows 10 universal Windows platform (UWP) app lifecycle
3. UWP apps have four states:
  1. NotRunning - Has not been launched or was once Suspended and could not be kept in memory
  2. Running in background - Default state that an app is launched, activated, or resumed into or when app is minimized or another app has the focus; UI is not visible
  3. Running in foreground - Splash screen is removed, and UI is visible
  4. Suspended - App in background state for N seconds and not doing anything; app remains in memory unless OS needs more
4. App events:
  1. Activated - Splash screen is displayed
  2. LeavingBackground - App is leaving background state and about to run in foreground
  3. EnteredBackground - App is entering background state; may save state if app is doing background work
  4. Suspending - App is moving to Suspended state; app should save relevant app and user data in case user or OS closes app
  5. Resuming - User switches to app or device comes out of a low power state
5. Demo to see events occuring - run in Debug mode and watch debug Output window in VS
```
// From App.xaml.cs
sealed partial class App : Application
{
	public App()
	{
		this.InitializeComponent();
		this.Suspending += OnSuspending;

		// Add event handlers
		this.EnteredBackground += App_EnteredBackground;
		this.LeavingBackground += App_LeavingBackground;
		this.Resuming += App_Resuming;
	}

	private void App_Resuming(object sender, object e)
	{
		Debug.WriteLine("Resuming");
	}

	private void App_LeavingBackground(object sender, LeavingBackgroundEventArgs e)
	{
		Debug.WriteLine("LeavingBackground");
	}

	private void App_EnteredBackground(object sender, EnteredBackgroundEventArgs e)
	{
		Debug.WriteLine("EnteredBackground");
	}

	...

	private void OnSuspending(object sender, SuspendingEventArgs e)
	{
		Debug.WriteLine("Suspending");
		...
	}
}
```
6. CRASH! - If app stops responding or generates an exception, Windows asks the user for consent to send a problem report to Microsoft
7. Apps should restore their UI state so the user's work is not lost
8. Session data vs. app data
  1. Session data - temporary data that is relevant to the user’s current session
    1. Examples
      1. News item user is reading in news app
      2. User's placement of tiles during one move in Scrabble game
    2. Should be restored if user navigates back to app
    3. A session ends when the user closes the app, logs off, or reboots the computer
    4. Usually saved when enabling NavigationCacheMode
  2. App data - data that is persistent across sessions and must always be accessible to the user
    1. Examples
      1. User's preferred news categories
      2. Score of all ongoing Scrabble games
    2. Should be restored after app is closed and restarted
    3. Could be stored on the local machine (LocalSettings) or in the cloud (RoamingSettings) so the data is accessible to the same user on different machines

Saving state (app data)

Saving app data with ApplicationData class
1. LocalFolder for saving app data in files on the device
2. LocalSettings for saving key-value pairs on the device
3. RoamingFolder for saving app data files in the cloud; data is accessible on different devices to same user
4. RoamingSettings for saving key-value pairs in the cloud
5. Other: LocalCacheFolder, TemporaryFolder, SharedLocalFolder
OnSuspending() method in App.xaml.cs called when suspending
Save the navigation state
```
private void OnSuspending(object sender, SuspendingEventArgs e)
{
	var deferral = e.SuspendingOperation.GetDeferral();
	//TODO: Save application state and stop any background activity

	Frame frame = Window.Current.Content as Frame;
	ApplicationData.Current.LocalSettings.Values["NavigationState"] = frame.GetNavigationState();

	deferral.Complete();
}
```
1. Calling GetNavigationState() causes OnNavigatedFrom() to be called when the app is terminated, which is ideal for saving the form's state
2. Warning: Calls to Frame.Navigate() must either pass no second parameter or a second parameter that is a primitive type like string, char, int, etc. If the parameter is an object, an exception will be thrown because the object cannot be serialized automatically by GetNavigationState().

Restore navigation state in OnLaunched() so when app returns to same page when brought back to Running state

protected override void OnLaunched(LaunchActivatedEventArgs e)
{
	// Skip...

	if (e.PreviousExecutionState == ApplicationExecutionState.Terminated)
	{
		//TODO: Load state from previously suspended application
		rootFrame.SetNavigationState((string)ApplicationData.Current.LocalSettings.Values["NavigationState"]);
	}

	// Skip...
}

Save app data in LocalSettings when navigating away from page (OnNavigatedFrom() is called when app is suspended)

protected override void OnNavigatedFrom(NavigationEventArgs e)
{
	ApplicationData.Current.LocalSettings.Values["username"] = username;
}

Restore app data when navigating to the page in OnNavigatedTo()

protected override void OnNavigatedTo(NavigationEventArgs e)
{
	if (ApplicationData.Current.LocalSettings.Values.ContainsKey("username"))
	{
		string username = ApplicationData.Current.LocalSettings.Values["username"] as string;
	}
}

Multiple values can be stored in an ApplicationDataCompositeValue object

// In OnNavigatedFrom
var composite = new ApplicationDataCompositeValue();
composite["field1"] = textBox1.Text;
composite["field2"] = textBox2.Text;
ApplicationData.Current.LocalSettings.Values["pageState"] = composite;

// In OnNavigatedTo
var composite = ApplicationData.Current.LocalSettings.Values["pageState"] as ApplicationDataCompositeValue;
textBox1.Text = composite["field1"] as string;
textBox2.Text = composite["field2"] as string;

To clear the state on a new navigation, check e.NavigationMode

protected override void OnNavigatedTo(NavigationEventArgs e)
{
	if (e.NavigationMode == NavigationMode.New)
	{
		// Disregard saved state
		ApplicationData.Current.LocalSettings.Values.Remove("pageState");
	}
	else if (ApplicationData.Current.LocalSettings.Values.ContainsKey("pageState"))
	{
		// Restore saved state
		var composite = ApplicationData.Current.LocalSettings.Values["pageState"] as ApplicationDataCompositeValue;
		textBox1.Text = composite["field1"] as string;
		textBox2.Text = composite["field2"] as string;
	}
}

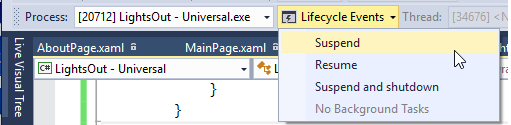

Simulating suspending, terminating, and restoring an app in Visual Studio
1. Run debugger (F5)
2. Select an option from the debugger
3. Select Suspend and shutdown so the Suspending event occurs and state management code is executed
4. Press F5 to see state restored
5. If you stop the debugger (Debug > Stop Debugging), and restart, LaunchActivatedEventArgs.PreviousExecutionState in OnLaunched() will be ClosedByUser, so SetNavigationState() not called
Serialization
1. Most apps need to save the state of various objects
2. Serialization is the process of converting an object into some other representation (text or binary) that can be used to later restore the object
3. Deserialization is the process of restoring a serialized object back to its original form
4. Json.NET is a popular library for serializing objects with JSON
  1. Install Json.NET using nuget
```
PM> Install-Package Newtonsoft.Json
```
  2. Serialize/deserialize example
```
Student stu = new Student();
stu.Name = "Bob";
stu.Gpa = 3.5;

// Serialize object
string json = JsonConvert.SerializeObject(stu);

// Deserialize
Student newStu = JsonConvert.DeserializeObject<Student>(json);
```
  3. Only public properties are read/written, so must add properties to properly serialize private data
  4. Store the serialized object in OnNavigatedFrom and deserialize in OnNavigatedTo
